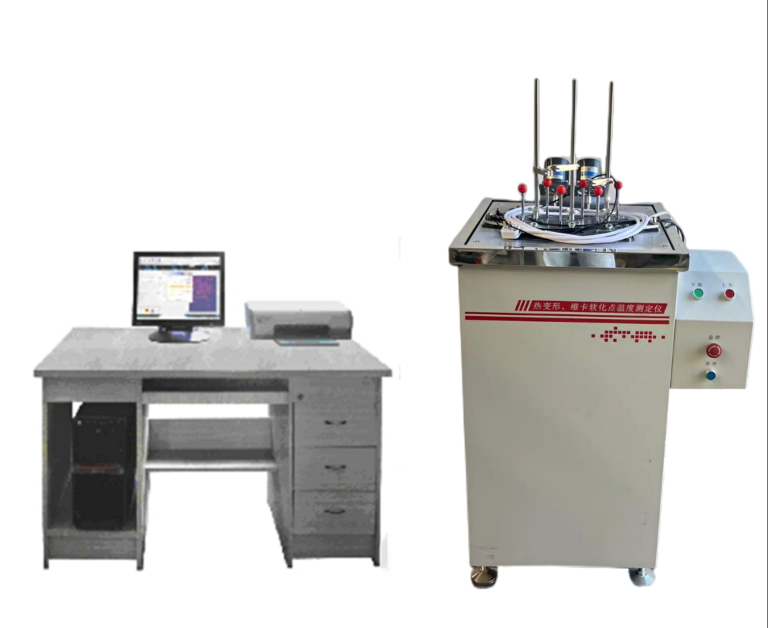

The WK3 Intelligent Heat Distortion & Vicat Softening Temperature Tester is a testing equipment developed by our company for determining the Vicat softening temperature (VST) of rigid PVC (PVC-U) pipes, thermoplastic materials, as well as rigid molded products and sheets. It is widely used by quality inspection agencies, research institutes, and manufacturers.
This device features computerized automatic control, real-time monitoring of bath temperature, display/printing of heating curves and displacement-temperature curves, and automatic generation of test reports for material softening characteristic analysis. With temperature measurement and control accuracy exceeding national standards, it ensures precise and reliable results, making it an increasingly popular new-generation testing instrument.
Conforms to the following standards:
GB8802-2001, GB1633-2000, GB1634.1-2004/ISO75-1:2003, GB1634.2-2004/ISO75-2:2003
Intelligent regulation and digital temperature control system (Accuracy: Class 0.2)
VST Test Frame: Holds specimens, applies loads, and measures VST.
Thermostatic Bath: Comprises insulated tank, heat-transfer oil (silicone/transformer oil/paraffin), heater, stirrer, cooler, and specimen mounting plate. Ensures rapid cooling for repeated tests.
Control Unit: Integrates temperature controllers, sensors, and electrical components for precise oil bath heating control.
Power Supply: AC 380V, 2.2kW
Penetrator Cross-Sectional Area: 1mm²
Penetrator Tip Radius: R 3 mm
Heat Distortion Load (penetrator + load rod): Min. 80±2.5% g
Vicat Softening Load (penetrator + load rod): Min. 84±2.5% g
Heating Rate: Adjustable between 5±0.5°C/6min to 12±1.0°C/min
(Control accuracy: 50±1°C/h to 120±2°C/h)
Test Medium: No. 0 (or No. 10) transformer oil
Deformation Measurement: Displacement sensor (Accuracy: 0.01mm)
Temperature Measurement: Platinum RTD sensor (Accuracy: Class 0.5)
Sample Capacity: Simultaneous testing for 3 specimens (same or different materials)
Data Output: PC system displays/prints three sets of temperature-displacement curves and temperature-time (heating rate) curves for material analysis.
Audible Alerts: Music prompt when reaching target softening temperature; test completion alarm.
Dimensions (L×W×H): 710×620×1580 mm
